Route By Header
Overview​
The Route By Header policy allows dynamic routing of incoming requests to different backend services based on specific HTTP header values. This policy is useful in multi-tenant or environment-based architectures where requests should be directed to different destinations depending on the context in the header (e.g., tenant ID, region, version).

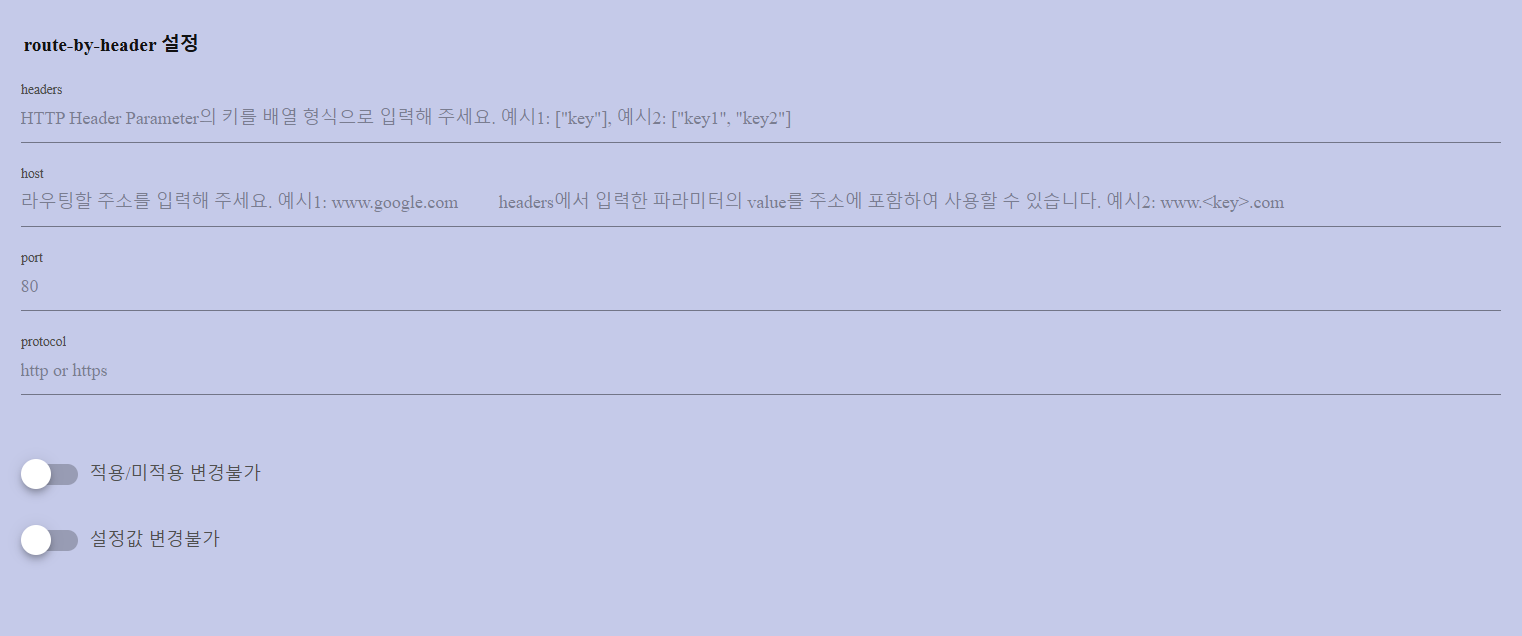

Configuration Details​
| Field | Description |
|---|---|
| headers | Enter the name(s) of the HTTP header(s) that will be used to extract routing values. Example 1: ["key"] Example 2: ["key1", "key2"] |
| host | Enter the target host for routing. You may use placeholder values based on the header values. Example 1: www.google.com Example 2: www.KEY.com |
| port | Specify the port of the destination server. Default is usually 80 (HTTP) or 443 (HTTPS). |
| protocol | Specify the protocol used for the connection. Must be http or https. |
note
Cannot be changed: Toggle to prevent this policy from being removed.
Cannot change the setting value: Toggle to prevent changes to the configuration values after setup.
Example​
Given below header parameter:
headers: "env"
If a request includes the HTTP header:
env: staging
And the host field is configured as:
www._ENV_.mycompany.com
Then the request will be routed to below address over the defined port and protocol:
[www.staging.mycompany.com](http://www.staging.mycompany.com/)
