Profile CICD Pipeline Settings

Applications registered in the profile must configure a CICD pipeline to be deployed on a cluster. For the configuration of the application pipeline, the profile deployment settings must be completed in advance.

Setting Profile CICD pipeline

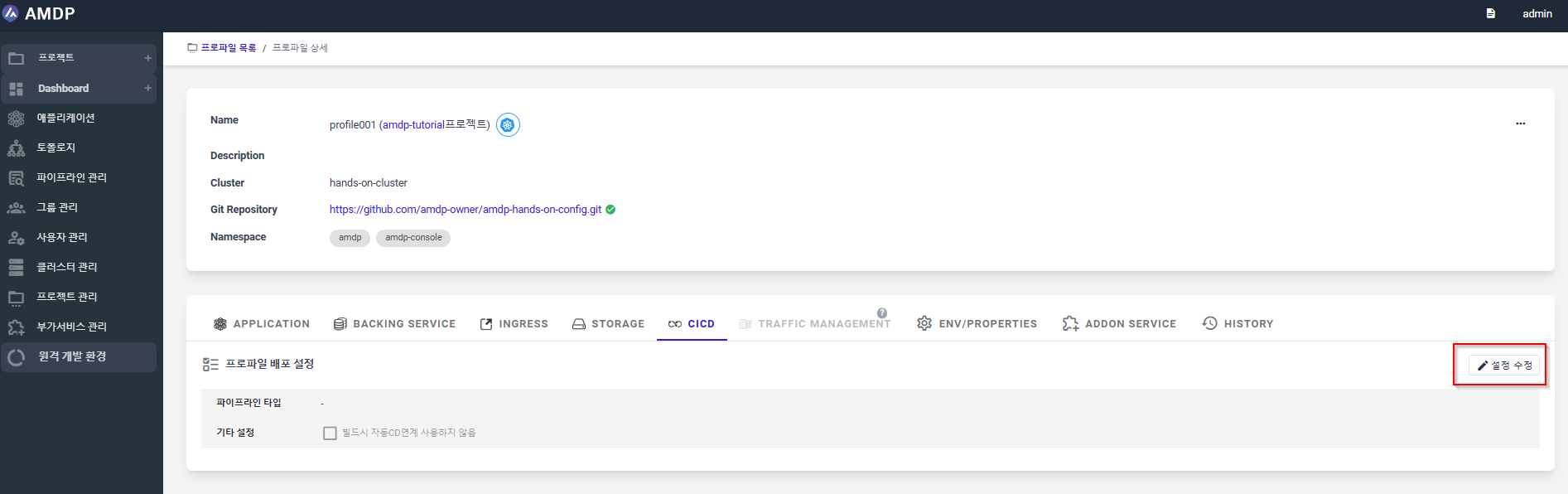

To configure the CICD pipeline of a profile, select tab CICD on the Profile details page:

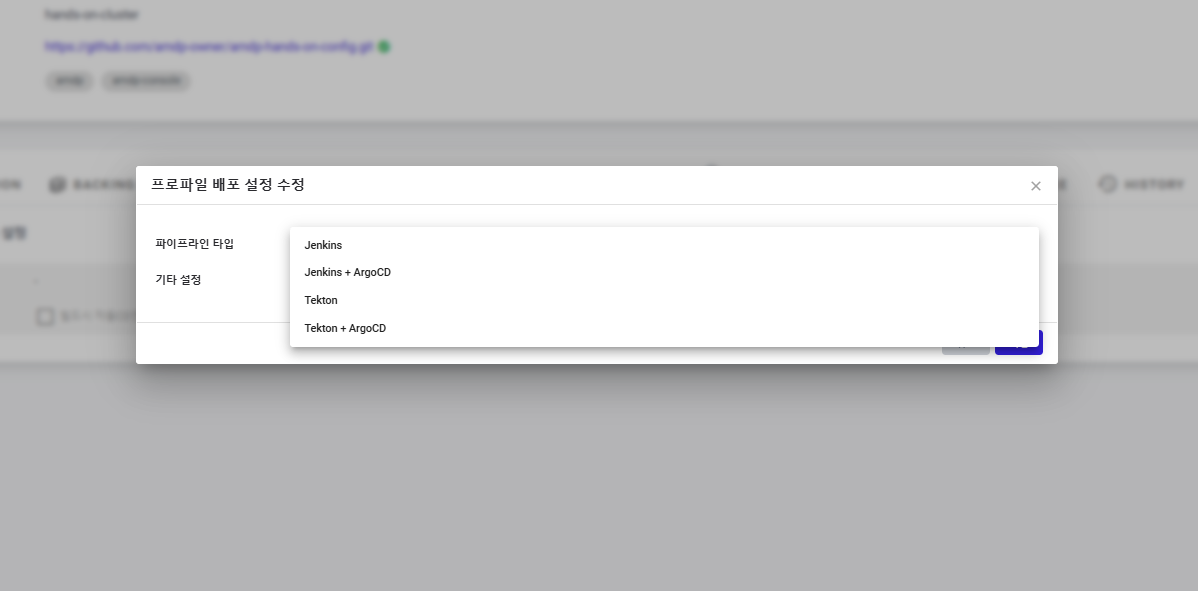

Then select the pipeline type:

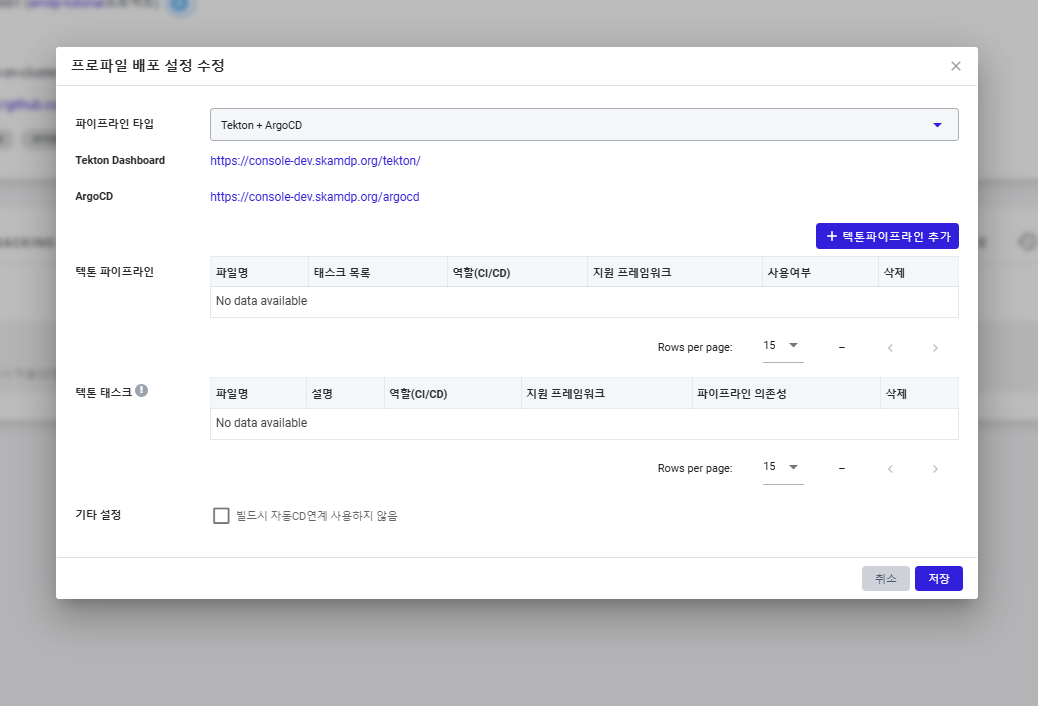

This pipeline type is configured only once and cannot be modified. Based on the pipeline types, the associated properties required to be setup:

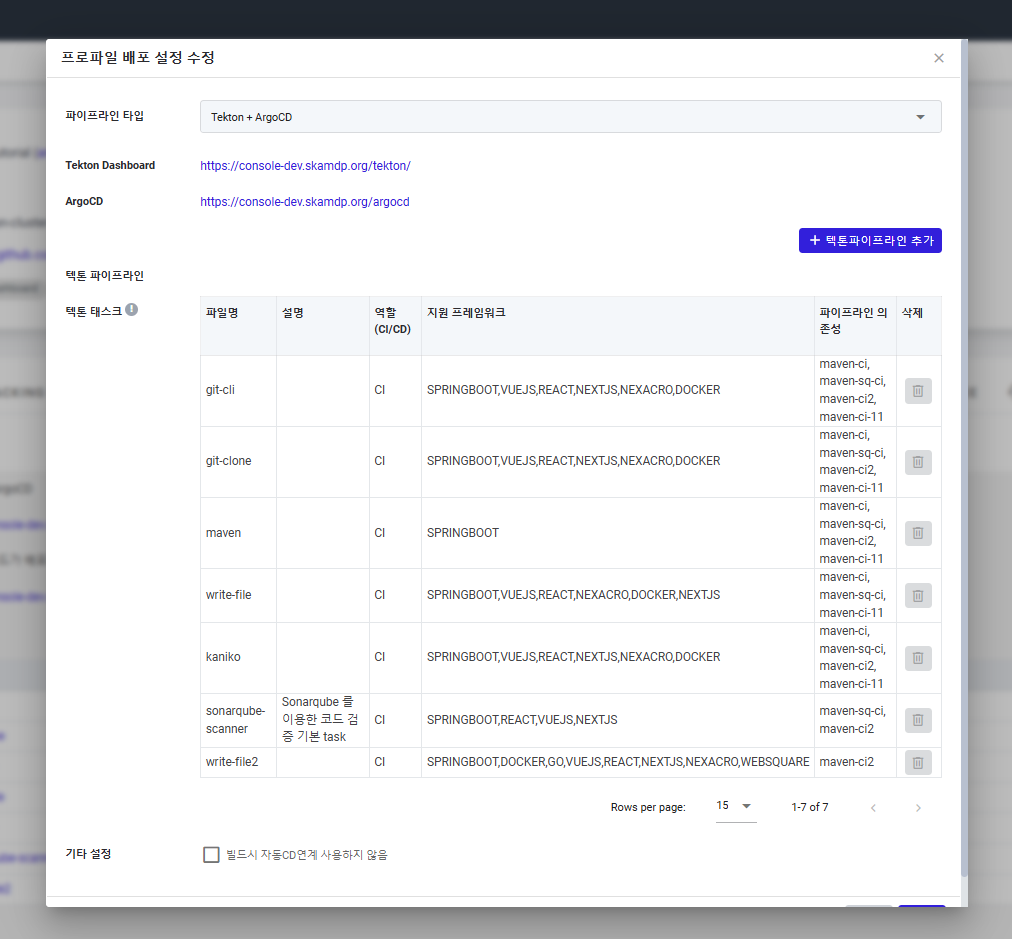

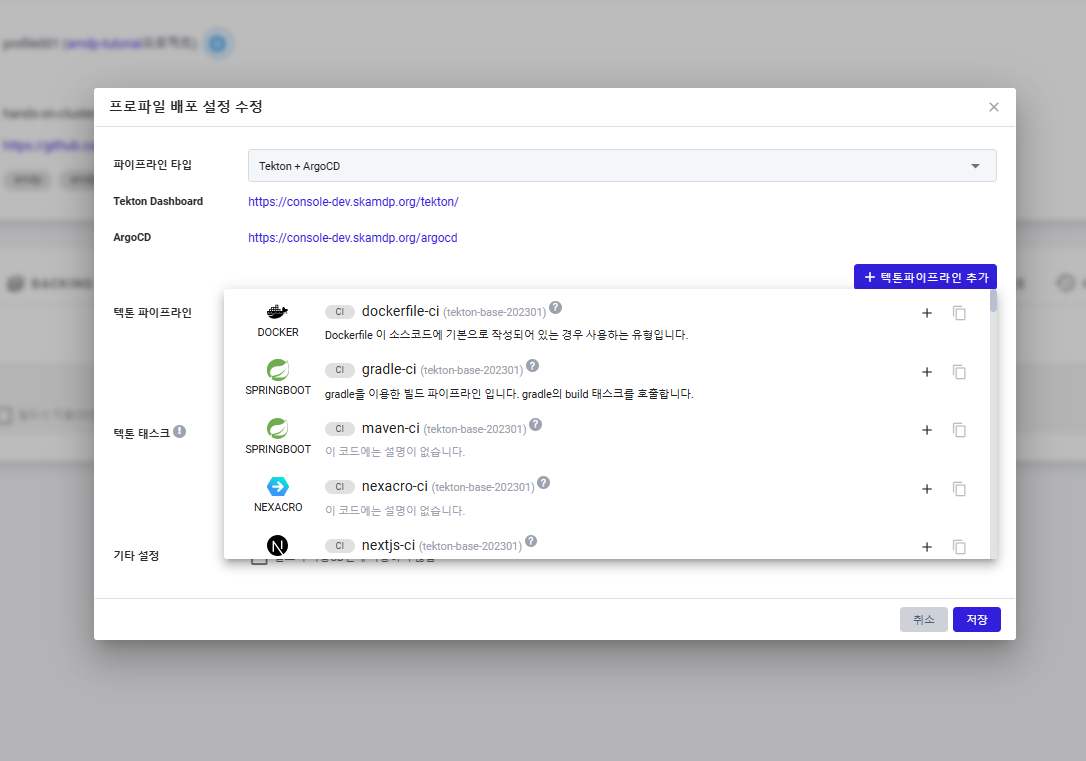

Click on button “Add Tekton pipeline” then select the icon “+” to add to the Tekton task list:

Click Save button to store the CICD pipeline configuration.

View and setting Pipeline type (Jenkins/Tekton/ ArgoCD)

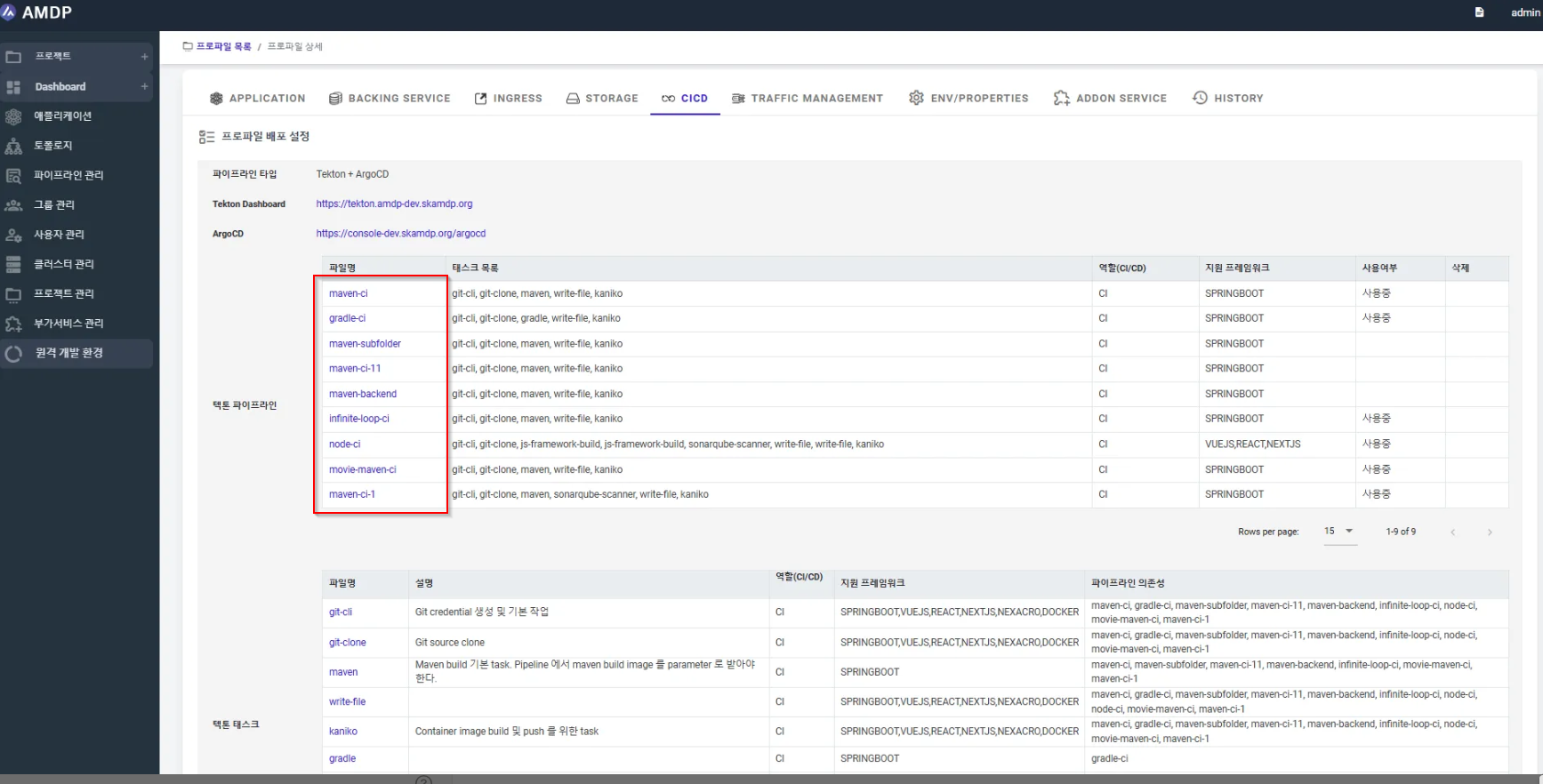

On the Profile detail page, when on CID tab, click on a specific name of a task, for instance maven-ci

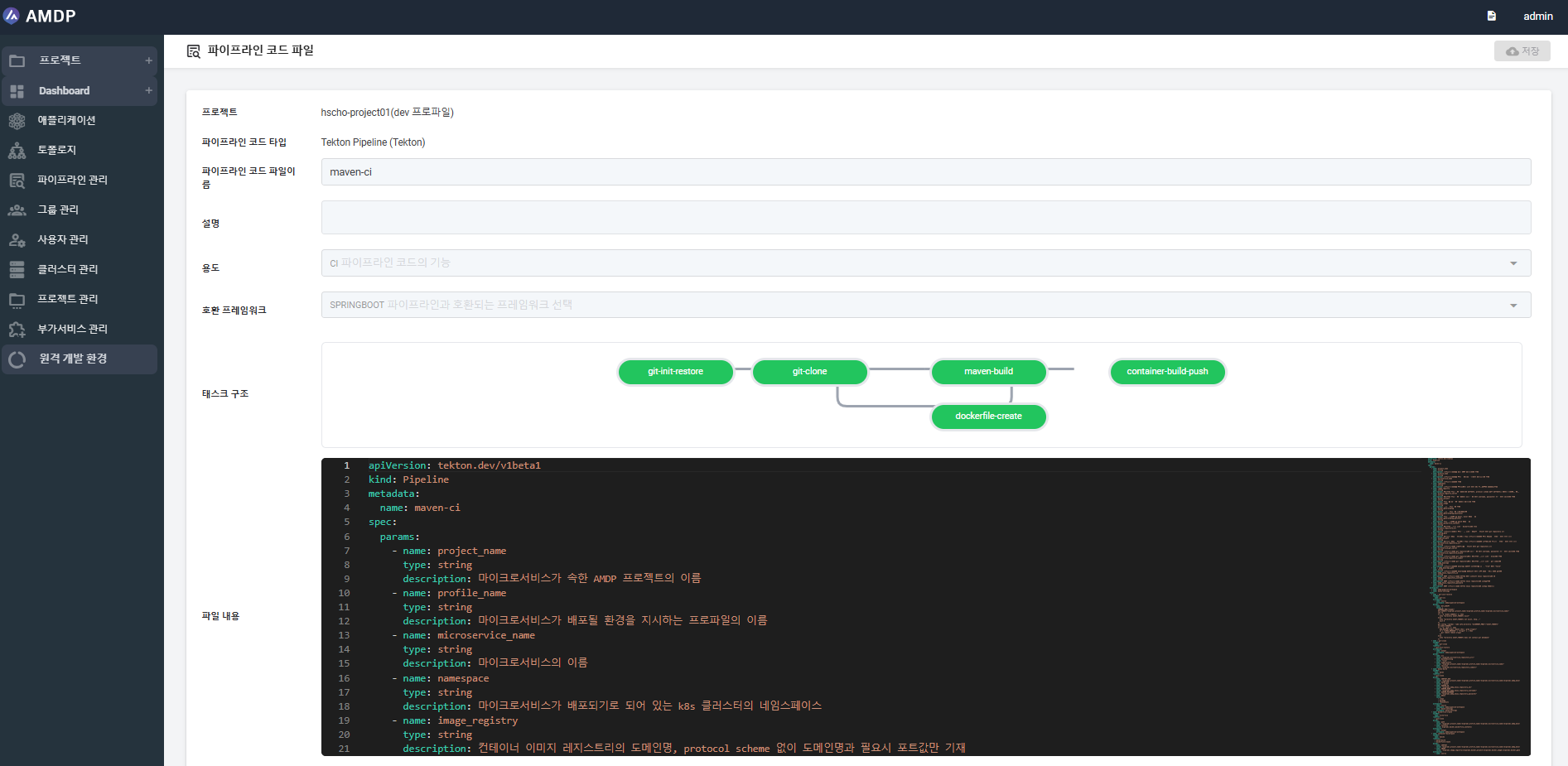

When file name maven-ci on the CICD setting is selected, the specific pipeline code files is displayed:

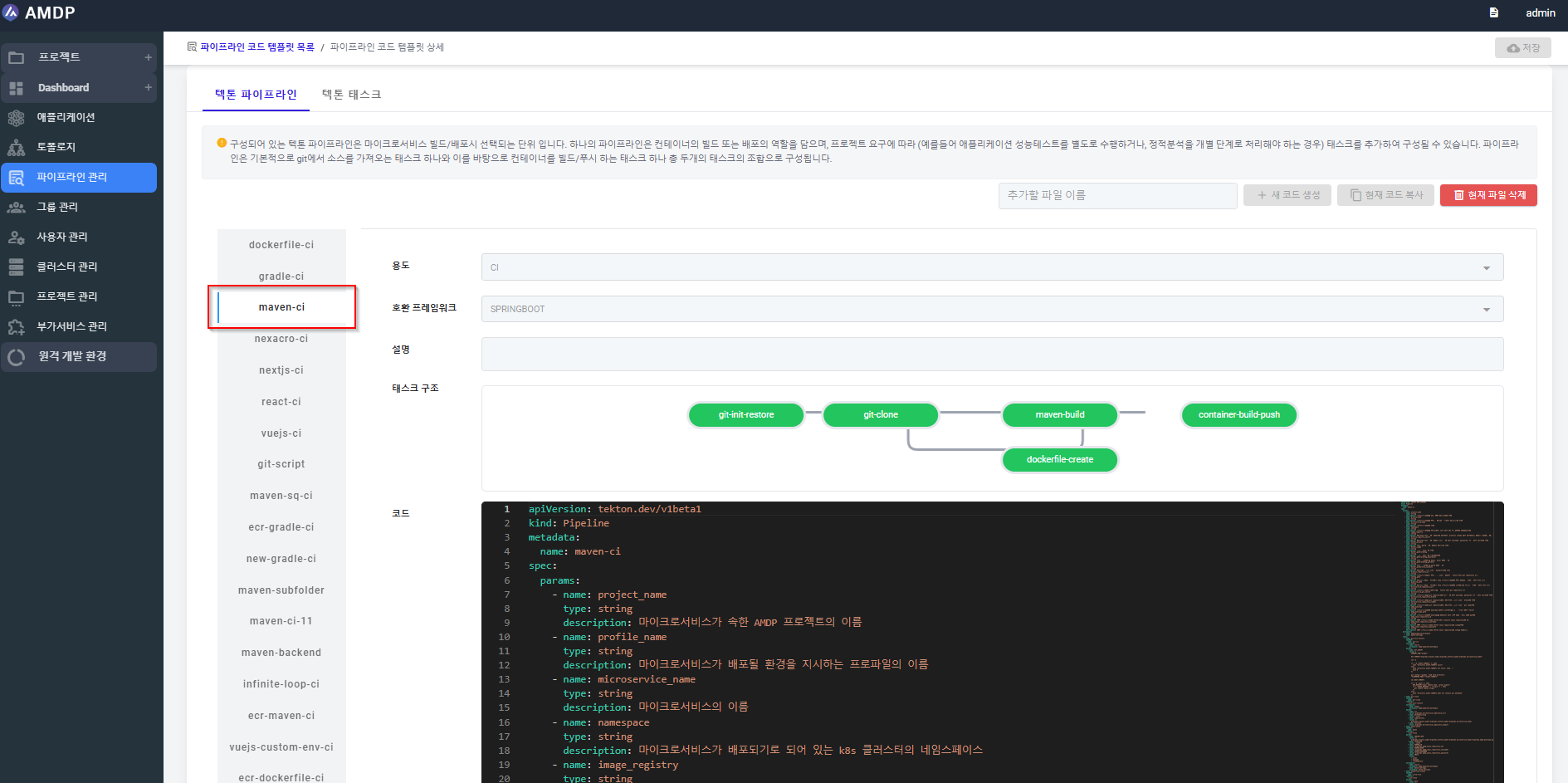

This pipeline code file is defined from the pipeline template which is represented in “Pipeline Template” module:
