Playground KDB

Use Playground KDB to test how well your Knowledge DB retrieves relevant content before connecting it to an agent.

Open Playground​

  1. Go to Knowledge DB.
  2. Select a KDB from the list.
  3. Click the (⋮) at KDB card and select Playground action to open the test screen.

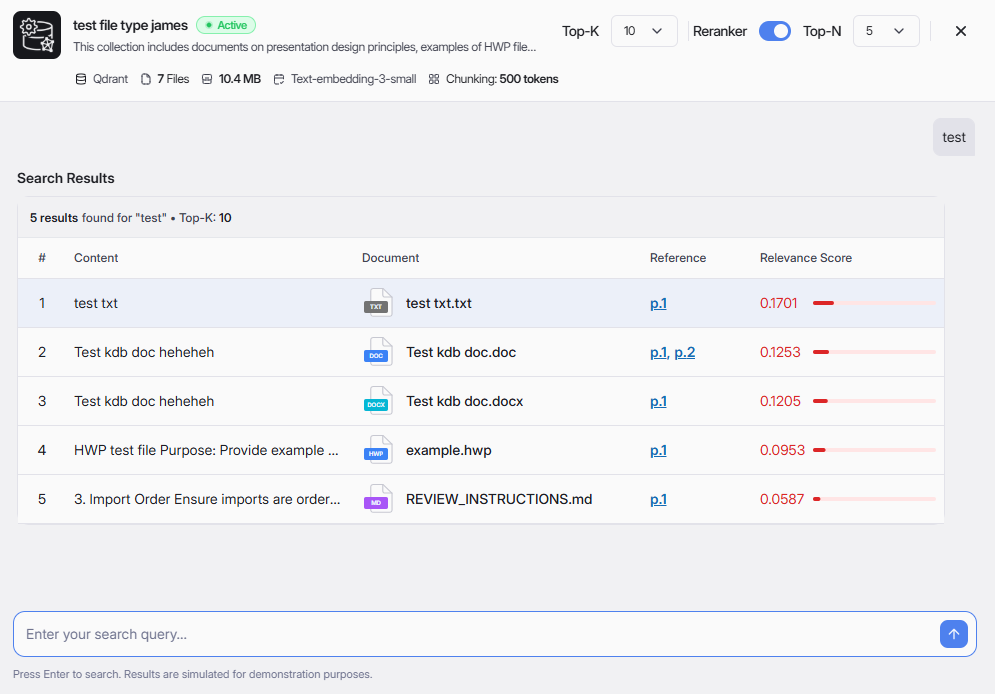

Playground Layout​

At the top, you can review KDB metadata such as:

  • KDB name and status
  • Vector DB
  • Number of files
  • Total size
  • Embedding model
  • Chunking size

Main areas:

  • Search input at the bottom
  • Search Results table in the center
  • Retrieval controls at the top-right

Retrieval Controls​

Configure retrieval quality before searching:

  • Top-K: Number of initial chunks to retrieve.
  • Reranker: Enable to re-rank retrieved chunks for better relevance.
  • Top-N: Number of final chunks shown after reranking.

Recommended start:

  • Top-K: 10
  • Reranker: On
  • Top-N: 5

Run a Search Test​

  1. Enter a test question in the input box (for example: testDb).
  2. Press Enter.
  3. Review returned rows in Search Results.

Understand Search Results​

Each row shows:

  • #: Rank position
  • Content: Retrieved text chunk. When hover over the result, a tooltip appears showing more details of the search result.
  • Document: Source file identifier.
  • Reference: Reference page in the document file. You can click on the page number to view the reference document in details.
  • Relevance Score: Similarity score and visual bar

Higher relevance score means better match to your query.

Tuning Tips​

  • If results are too broad: lower Top-K or Top-N.
  • If important text is missing: increase Top-K.
  • If ranking quality is weak: keep Reranker enabled.

Exit Playground​

Click the close icon (X) at the top-right to leave Playground and return to KDB list.
