Gateway List

Gateway List screen allows users to manage K8s Gateway resources that have been deployed in cluster and namespace.

Access Gateway List Screen​

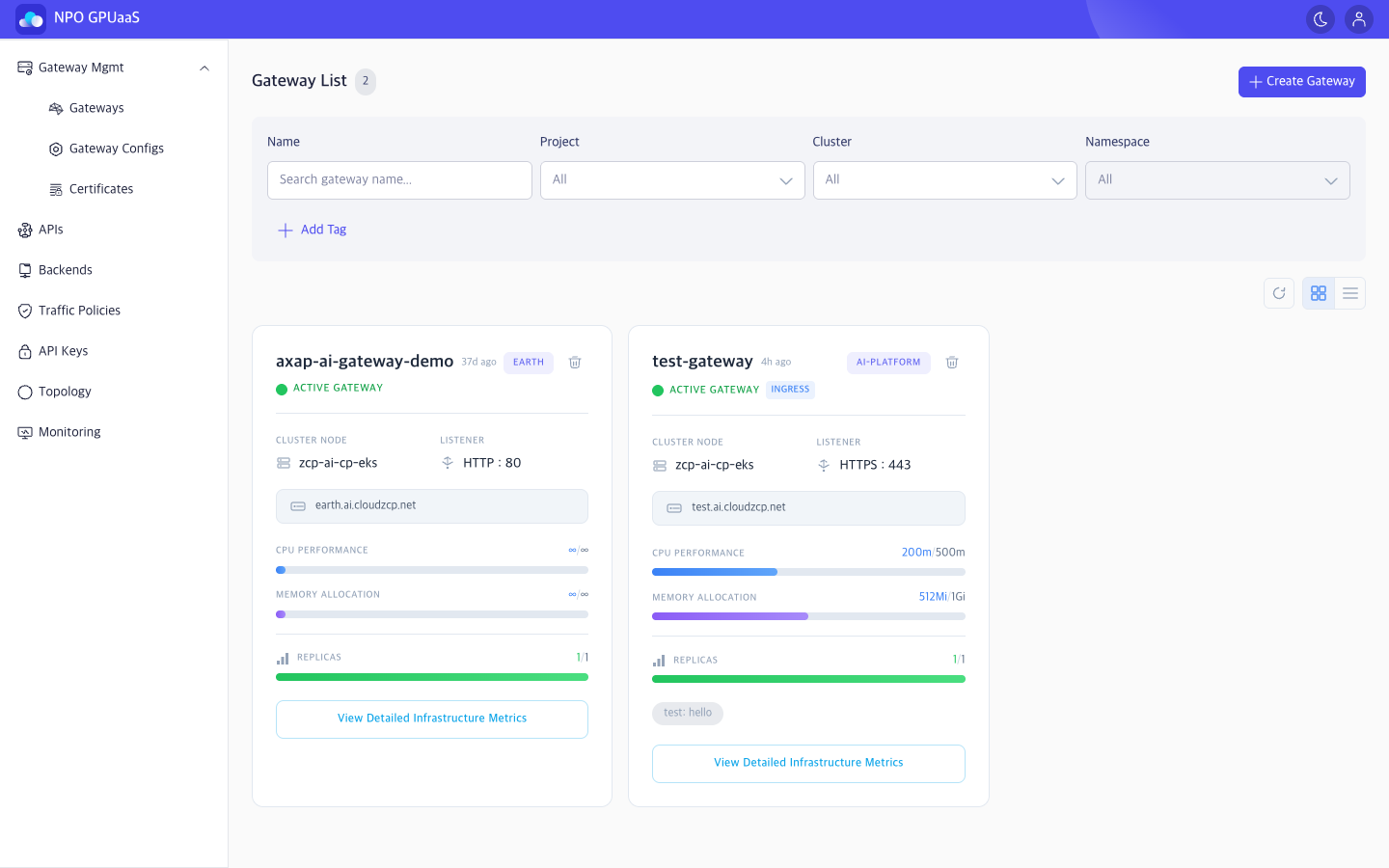

In the left-side navigation, select Gateway Mgmt > Gateways:

Search the Gateway​

You can use the Search function to quickly find specific gateway:

  • Name: Filter by Gateway name
  • Project: Filter by Project (default: All)
  • Cluster: Filter by Cluster (default: All)
  • Namespace: Filter by Namespace (default: All)

Search results are displayed immediately after the user enters a keyword or selects a value.

User can click Add Tag to add tag filters. Multiple tags are supported and combined using AND logic:

View Gateway List​

The list can be displayed in Card View (default) or Table View using the view toggle.

Card View​

Each Gateway card shows:

  • Name: Gateway name (click to open details)
  • Last Updated: Gateway last updated time (e.g., 36d ago)
  • Project: Project tag (e.g., EARTH, AI-PLATFORM)
  • Status: Gateway status, with optional Ingress badge when applicable
  • Cluster Node: Cluster name (e.g., zcp-ai-cp-eks)
  • Listener: Protocol and port of the first listener (e.g., HTTP:80, HTTPS:443)
  • Endpoint: Host domain (e.g., earth.ai.cloudzcp.net)
  • CPU Performance: Usage/Allocation (e.g., 200m/500m); if not set, displayed as ∞/∞
  • Memory Allocation: Usage/Allocation (e.g., 512Mi/1Gi); if not set, displayed as ∞/∞
  • Replicas: Available/Total (e.g., 1/1)
  • Tags: User-defined tags (e.g., test: hello)

Table View​

Displayed information:

  • Name: Gateway name (click to open details)
  • Project: Project tag (e.g., EARTH, AI-PLATFORM)
  • Cluster Node: Cluster name (e.g., zcp-ai-cp-eks)
  • Hostname: Host domain (e.g., earth.ai.cloudzcp.net)
  • Address: IP address (e.g., 172.20.101.242)
  • Resource
  • Tags: User-defined tags (e.g., test: hello)
  • Status: Gateway status

Action​

Create Gateway​

User can click Create Gateway to create a new Gateway. When clicked, navigates to Create Gateway screen.

View Details​

User can click the Gateway name to open the Gateway Details page.

Delete​

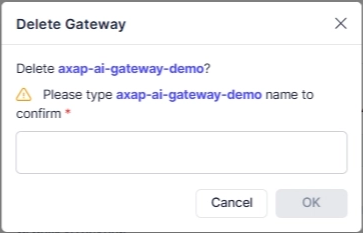

User can delete a gateway by clicking the Trash icon. Upon clicking, a confirmation popup will appear, and users must enter the gateway name to confirm deletion:
