Project Management

Overview​

Project Management in the Tenant Manager Console allows administrators to create, edit, and manage API-related or Developer Portal-related projects. Each project is associated with a specific gateway type and has its own set of assigned users with role-based access. This guide walks through the available actions and screen functionality.

In APIM, projects are displayed in two types:

  • type: apim – This represents the concept of an internal organization/team for API development within the APIM Console and is displayed as "Project" in the APIM Console.
  • type: developers – This represents "Application" or "My Application" for general users to develop within the Developers Portal.

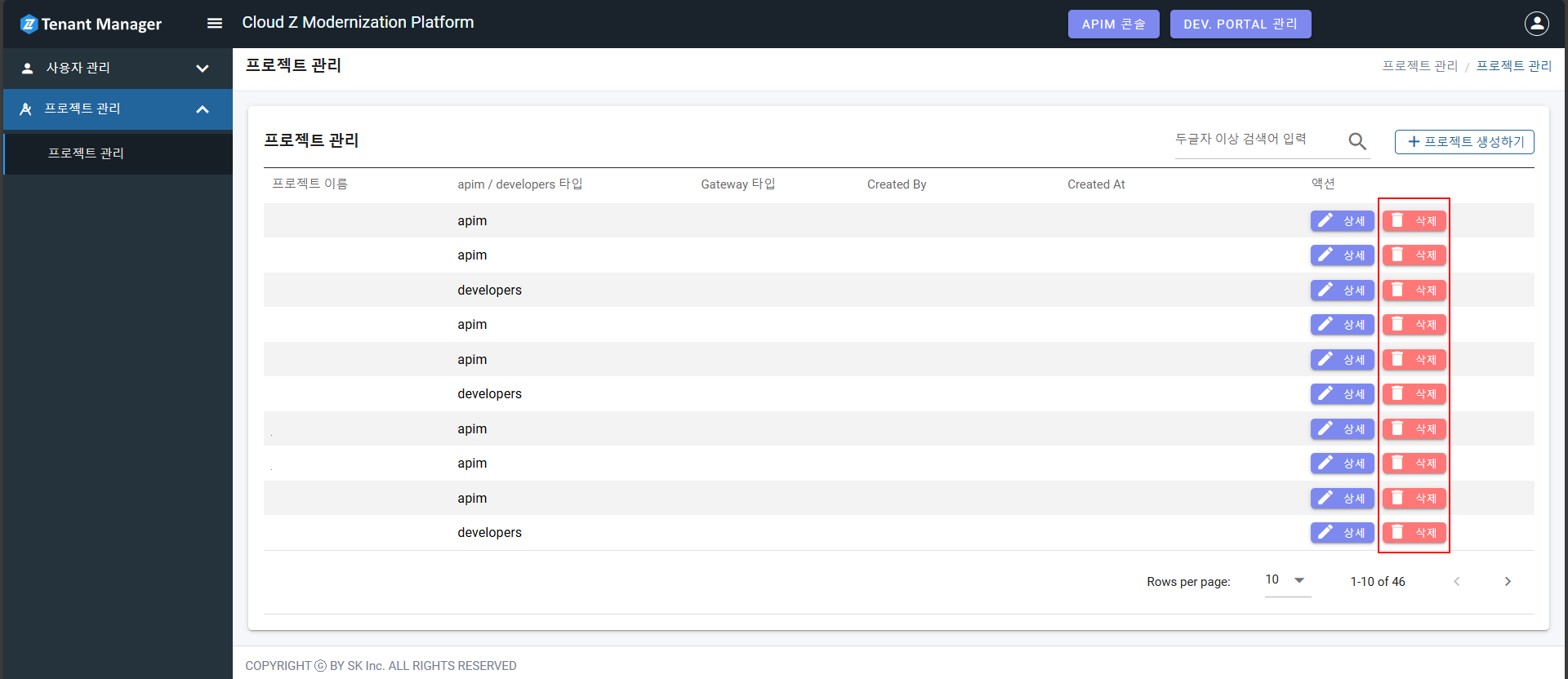

Project List Screen​

Purpose​

This is the main screen where users can view all existing projects, including their type, gateway, creator, and creation date.

User Actions​

  • View project list: All projects are listed in a paginated table.
  • Search: Enter two or more characters to filter the list by project name.
  • Create new project: Click the button to add new project.
  • Edit: Click the pencil icon button to view and update a project.
  • Delete: Click the red trash icon button to remove a project.

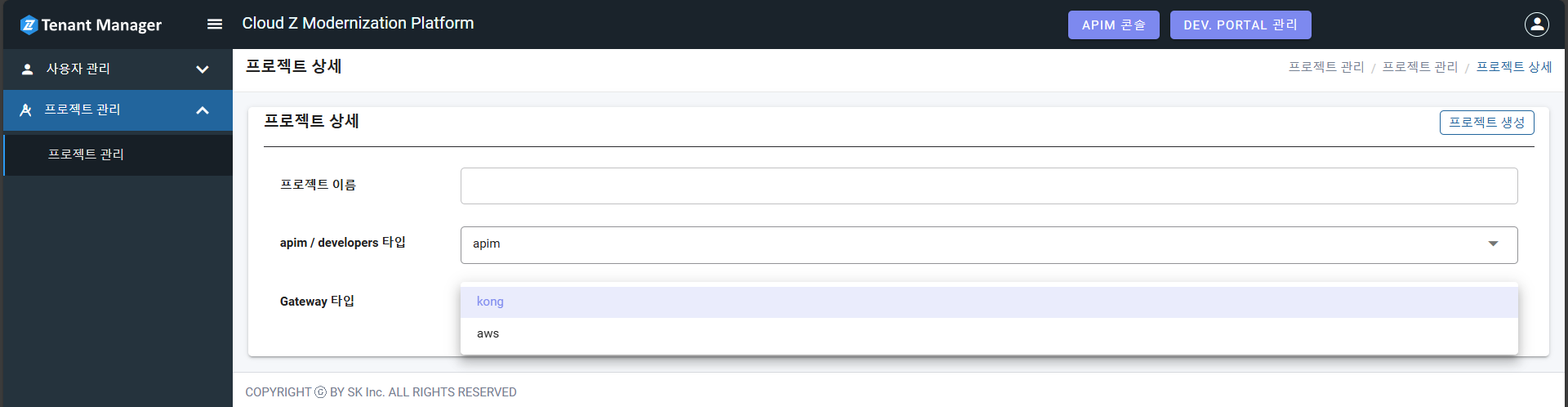

Create New Project​

Purpose​

This screen allows the creation of a new project by specifying its basic attributes.

Fields​

  • Project Name: Input field for the name of the project.
  • Project Type: Dropdown to select either apim or developers.
  • Gateway Type: Dropdown to choose between kong or aws.

User Actions​

Fill out the form and click submit button to create a project.

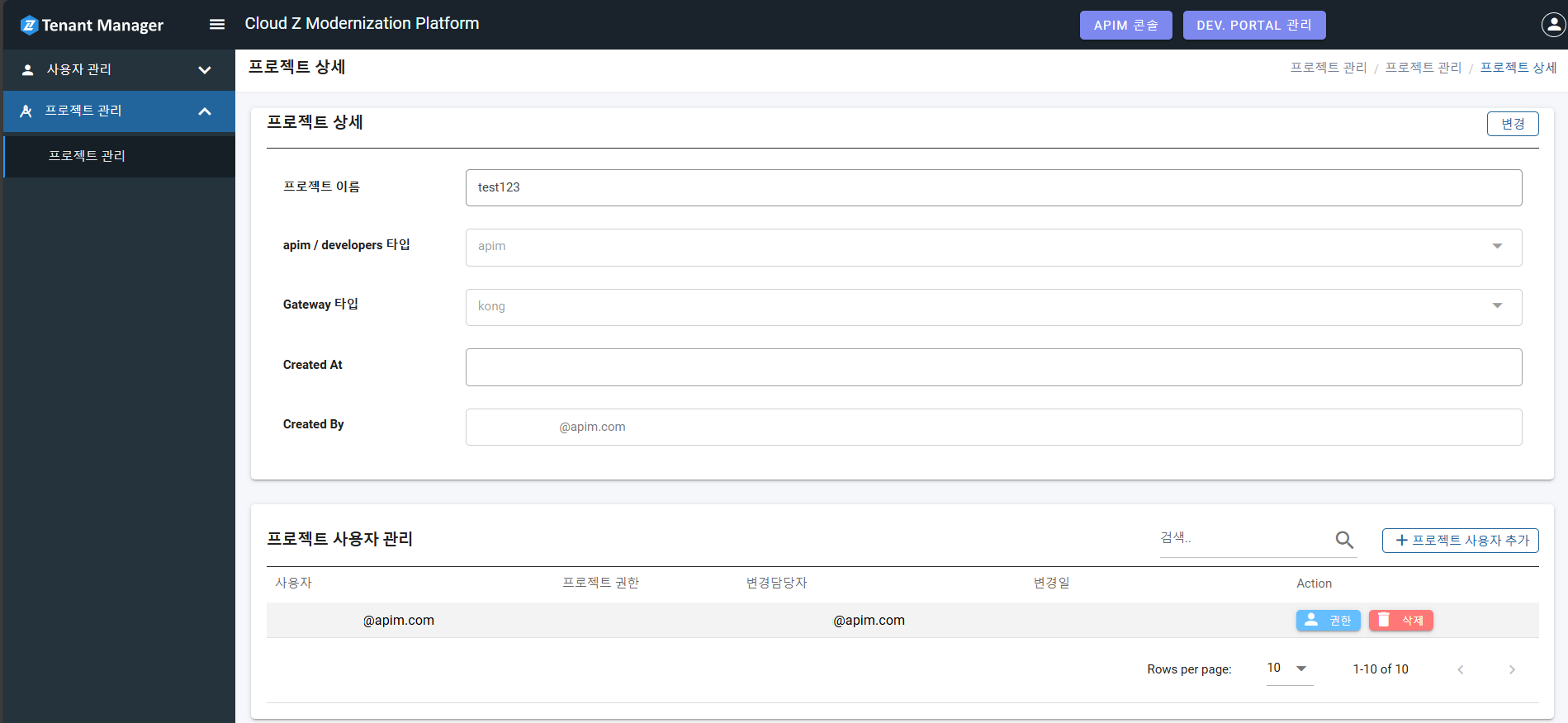

Edit Project & Project User Management​

Purpose​

After creating a project, you can edit its properties and manage its users in the detail view.

Fields​

All fields are read-only except for project name

  • Project Name
  • Project Type
  • Gateway Type
  • Created At
  • Created By

Project User Management Section​

This section shows a list of users assigned to the project.

User Actions:

  • Add User to Project: Click plus button to open the user selection dialog.
  • Modify User Role: Click the blue badge icon button to assign roles.
  • Remove User: Click the red trash icon button to remove the user from the project.

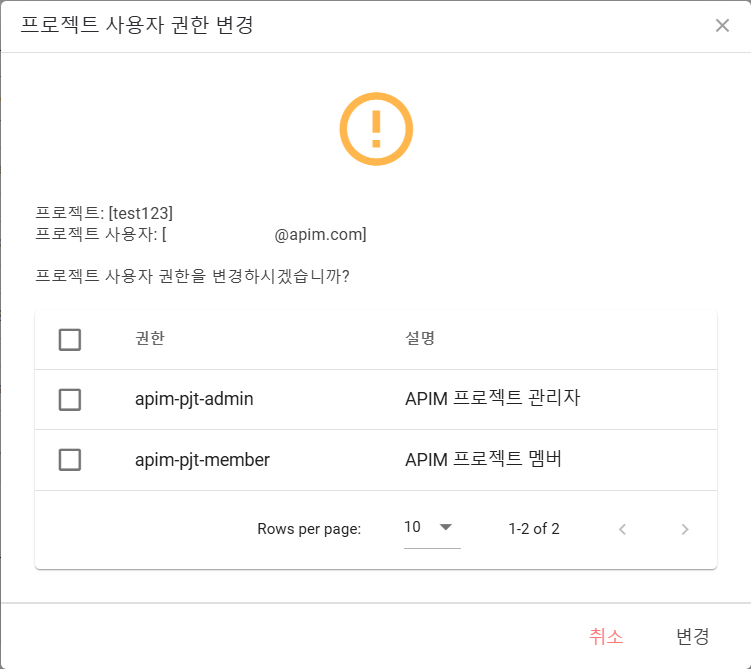

Change User Role in Project​

Purpose​

Allows assigning user roles within a project for access control.

Roles Available​

  • apim-pjt-admin: APIM Project Admin (has full access)
  • apim-pjt-member: APIM Project Member (limited access)

User Actions​

Select a role for the user.

Click save change button to apply the new role(s).

Add User to Project (User Search)​

Purpose​

Displays a list of all system users to be added to the project.

User Actions​

  • Search by keyword to filter the user list.
  • Select one or more users using the checkboxes.
  • Click add project user button to assign role for the selected users to the project
  • Submit the role assigning modal to finish adding the users to the project

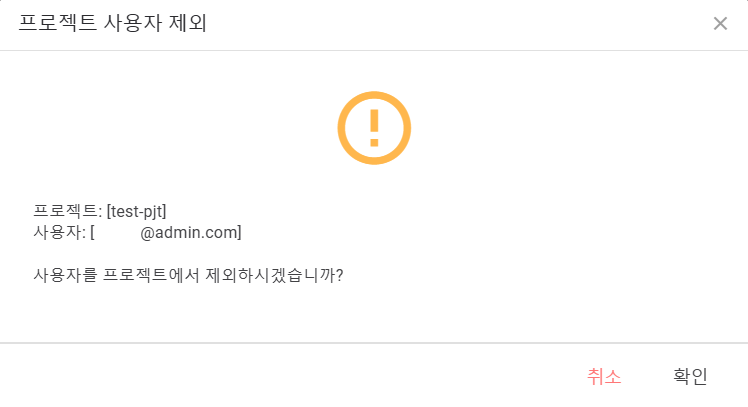

Remove User from Project​

Purpose​

Confirmation popup to remove a user from the project.

Message Displayed​

  • Confirmation that the user will be removed from the specified project.
  • Action options: Cancel, Confirm

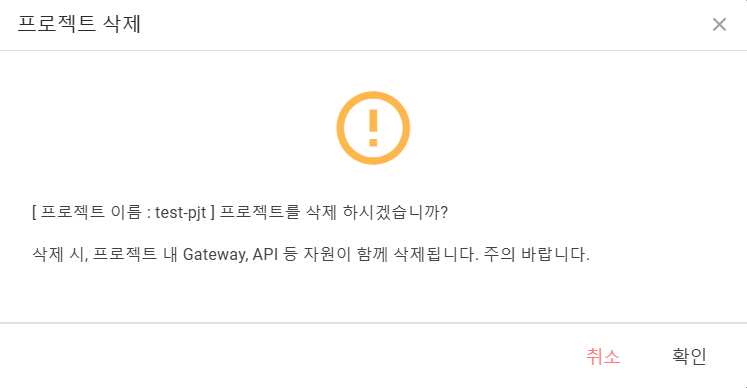

Delete Project​

Purpose​

Confirmation popup to delete an entire project.

Message Displayed​

  • Warning that all project resources (Gateway, API, etc.) will also be deleted.
  • Action options: Cancel, Confirm
