Create Gateway Config

Access Create Gateway Config Screen​

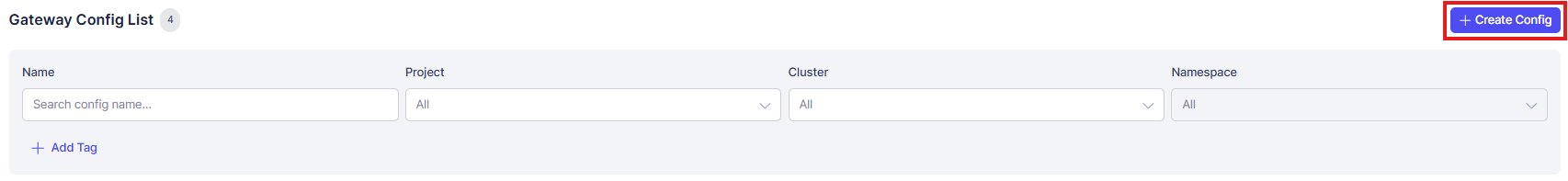

From the Gateway Config List page, click Create Config button at the top-right corner of the screen.

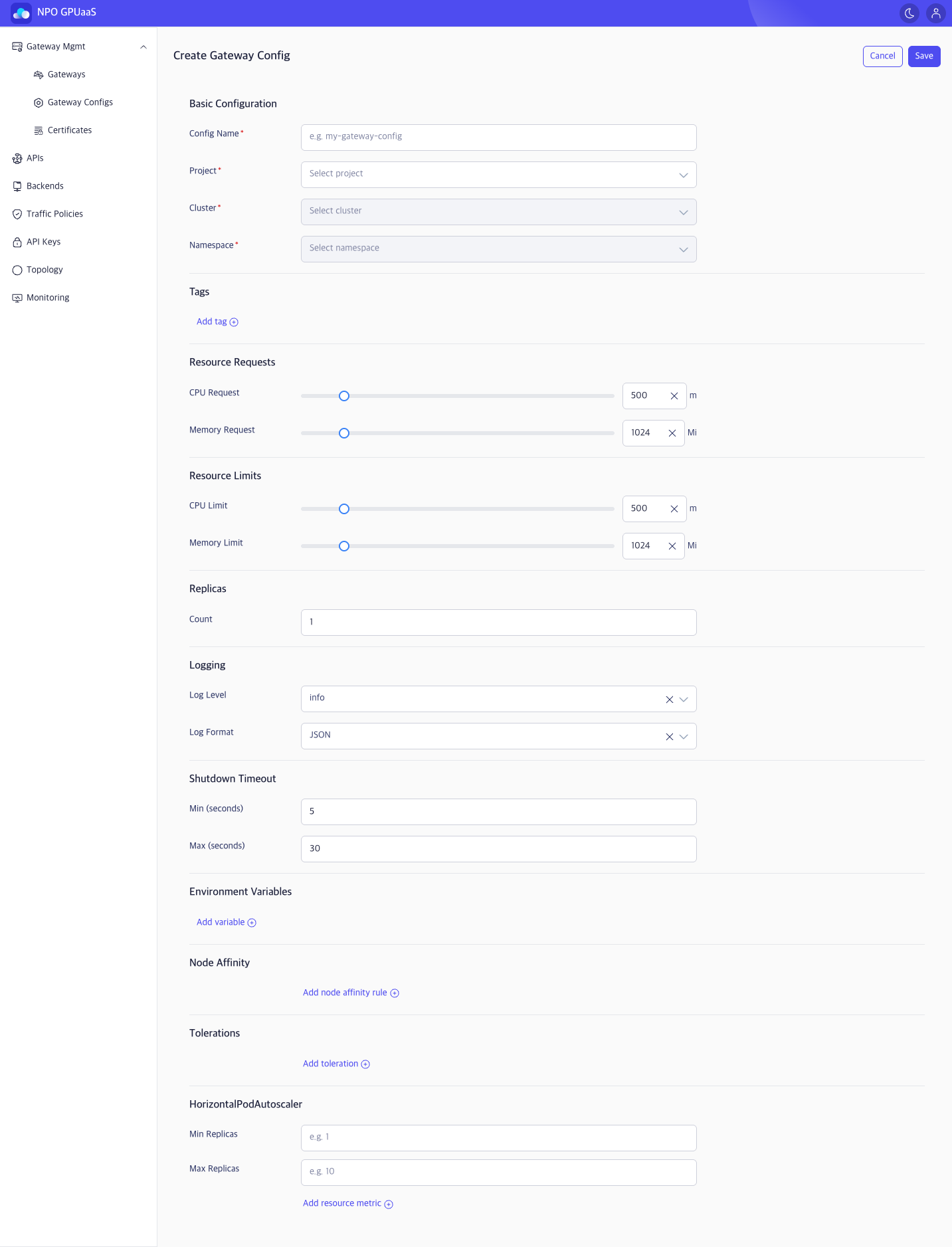

Step 1: Fill in the Create Gateway Config form​

Basic Configuration​

  • Config Name (Required): Gateway Config identifier (e.g., my-gateway-config). Must follow Kubernetes naming rules.
  • Project (Required): Select a project (depend on workspace context).
  • Cluster (Required): Select a cluster under the chosen Project.
  • Namespace (Required): Select a namespace under the chosen Cluster.

Tags​

User can add multiple tags for filtering on the Gateway list.

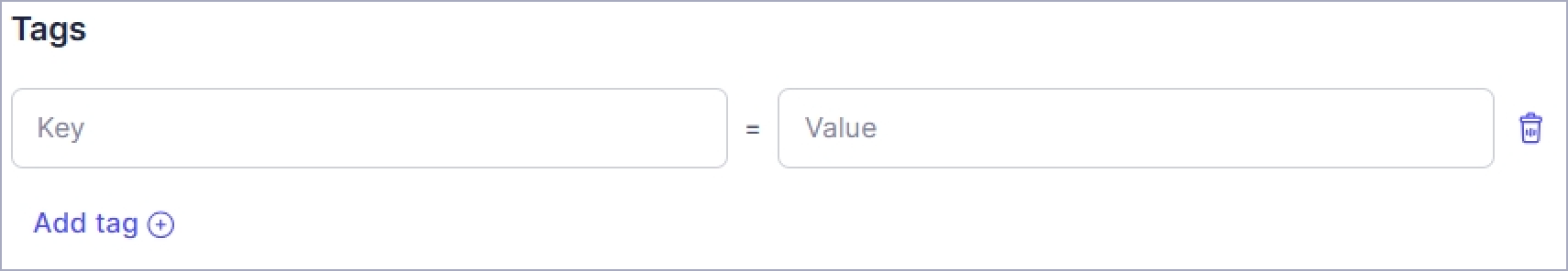

  • Click Add tag and enter Key and Value:

  • Multiple tags are supported.

Resource Requests​

  • CPU Request:
    • Use the slider for quick adjustment or type an exact value in the input field.
    • Unit: millicore (m).
  • Memory Request:
    • Use the slider for quick adjustment or type an exact value in the input field.
    • Unit: mebibyte (Mi).

Notes:

  • Default values: 500m/ 1024Mi

Resource Limit​

  • CPU Limit:
    • Use the slider for quick adjustment or type an exact value in the input field.
    • Unit: millicore (m).
  • Memory Limit:
    • Use the slider for quick adjustment or type an exact value in the input field.
    • Unit: mebibyte (Mi).

Notes:

  • Default values: 500m/ 1024Mi

Replicas​

  • Value must be an integer.

Logging​

  • Log Level: Select the logging verbosity (e.g., info).
  • Log Format: Select the output format (e.g., JSON).

Shutdown Timeout​

  • Min (seconds): Minimum shutdown timeout (e.g., 5)
  • Max (seconds): Maximum shutdown timeout (e.g., 30)

Environment Variables​

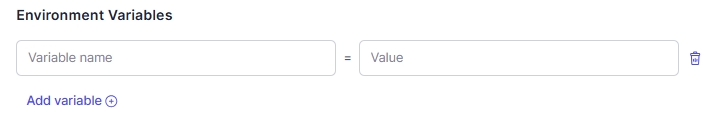

  • Click Add variable and enter Variable name and Value to add a new variable:

  • Multiple variables are supported

Node Affinity​

  • Enter a Key, Value and select an operator to add node affinity.
  • Multiple node affinity rules are supported.

Tolerations​

  • Enter a Key, Value and select an operator to add node affinity.
  • Multiple tolerations are supported.

HorizontalPodAutoscaler​

  • Min Replicas: Minimum number of replicas (integer, e.g., 1)
  • Max Replicas: Maximum number of replicas (integer, e.g., 10)
  • Resource metrics:
    • User can click Add resource metric to add multiple scaling metrics, enabling replicas to scale automatically based on resource usage:

Step 2: Save or Cancel​

  • After completing the form, click Save to create Gateway Config.
  • In case you want to discard the changes, click Cancel and navigates back to the Gateway Config List page.
