View an MCP Server Registry Details

The MCP Registry Details page provides a comprehensive overview of a registered MCP instance. This page helps users understand the available tools (API endpoints), configuration details, and the type of registry (internal or external).

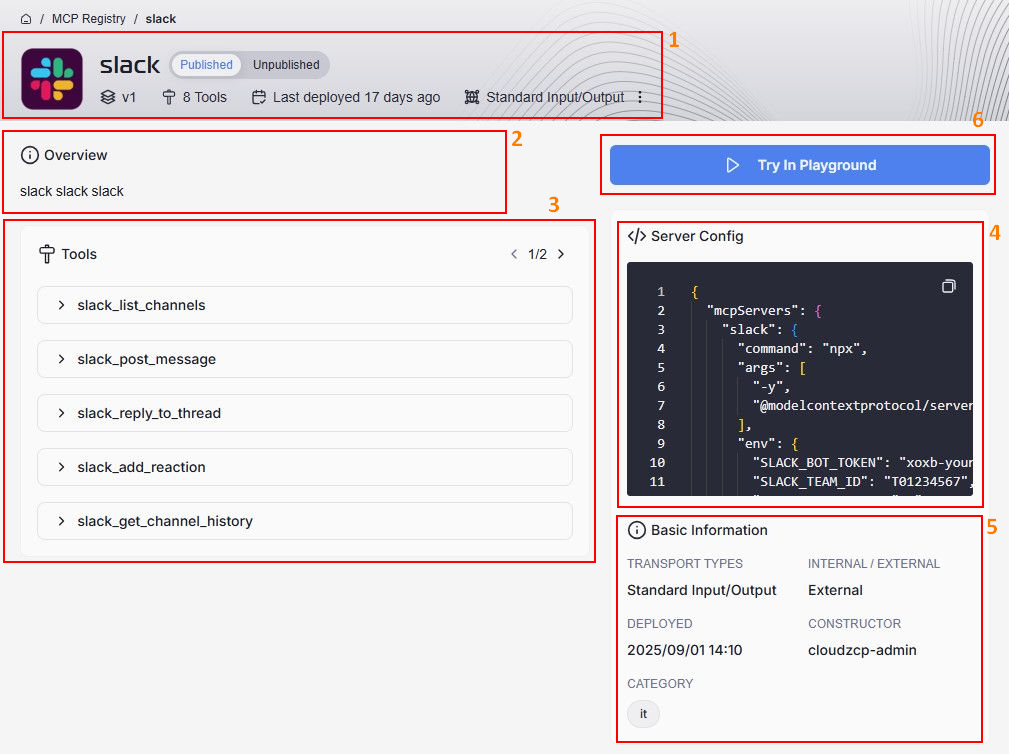

External Registry:

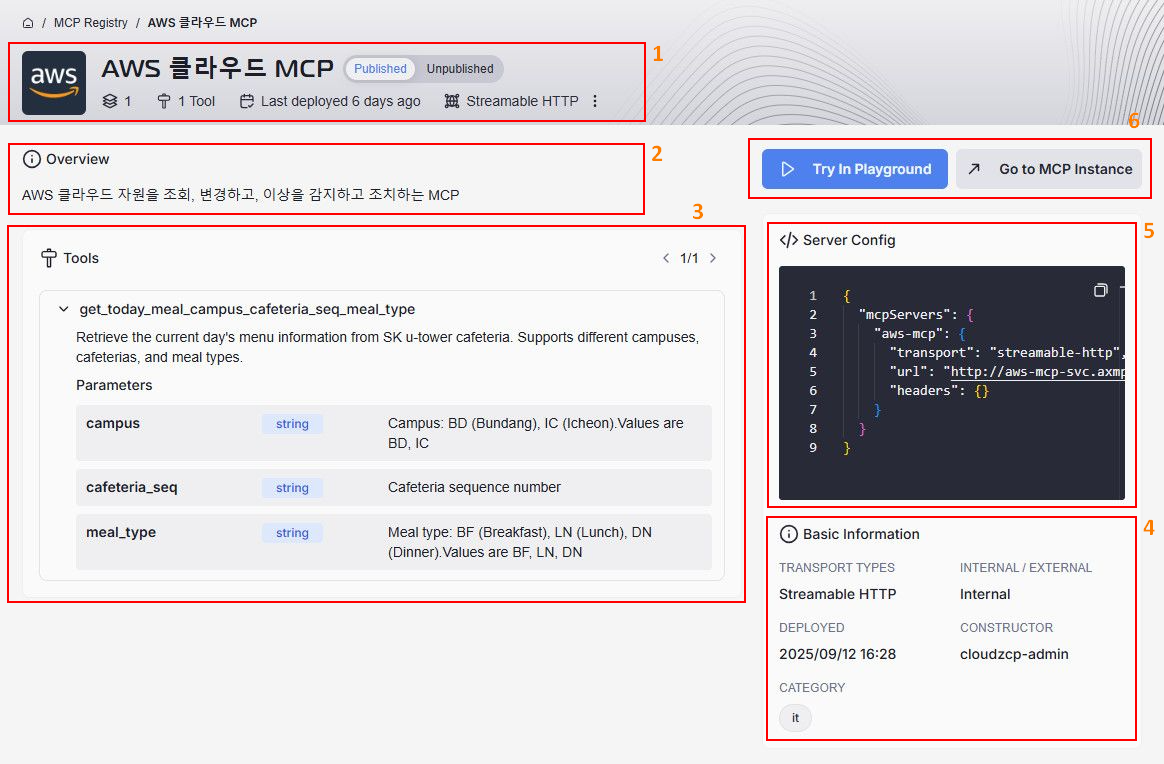

Internal Registry

Understand the Details of an MCP Registry

1. Page Header

• Registry Name & Icon: The page displays the name and icon/logo of the MCP instance (e.g., "slack" or "AWS 클라우드 MCP").
• Status: Indicates whether the registry is Published or Unpublished.
• Version: Shows the current version (e.g., v1).
• Tools Count: Displays the number of available tools or endpoints.
• Last Deployed: Shows when the registry was last updated or deployed.
• Transport Type: Indicates the communication method (e.g., "Standard Input/Output" or "Streamable HTTP").

2. Overview Section

• Description: Briefly explains the purpose and main features of the MCP instance. This retrieved from Description inputted when publish MCP Server.

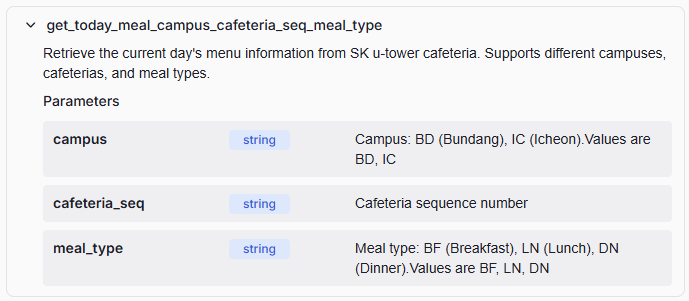

3. Tools (API Endpoints) Section

• List of Tools: Displays all available API endpoints for the MCP instance.
• Tool Details: Click on the expand icon to view the endpoints details. For each tool, you can view:
  • Name: The function or endpoint name (e.g., slack_list_channels, get_today_meal_campus_cafeteria_seq_meal_type)
  • Description (if available): Explains what the endpoint does and any specifics about the parameters.
  • Parameters: Shows required input parameters and their types.

4. Server Config Section

This section shows a sample connection configuration in JSON format, including endpoint URL, authentication headers, and other connection details. This helps developers understand how to connect to and use the MCP instance from their applications.

5. Basic Information Section

• Transport Type: Displays the communication protocol (e.g., "Standard Input/Output", "Streamable HTTP").
• Registry Type: Indicates if the registry is Internal or External.
  • Internal Registry: Only accessible within your organization or specific environment.
  • External Registry: Accessible from outside your organization; for public or cross-organization use.
• Deployed: Shows when the registry was deployed.
• Constructor: Displays the owner who created this MCP instance

6. Action Buttons

• Try in Playground: Allows users to test or experiment with the API endpoints directly from the interface. Refer to (9+) MCP Registry Playground | Notion for details.
• Go to MCP Instance: (Available for Internal registries only) Redirects to a more detailed instance management page.
