📌 API Detail Design Document

1. API Information

• API Name: Collect sonar all data
• Module/Service: amdp-ags-dashboard-backend
• Author: Reus
• Created Date: 2025/08/18
• Last Updated: 2025/08/18

---

2. Overview

• Purpose: API collect data sonar on sonar server
• Description: Collect branch data

---

3. Endpoint Specification

• Method: POST
• URL: /dashboard/collect/sonar/all-data
• Headers:
  • Authorization: Bearer <token user>
  • Content-Type: application/json

Query Params

Name	Type	Required	Description	Example

Path Params

Name	Type	Required	Description	Example

Request Body

{
  "applicationId": "app-67890",
  "applicationName": "My Application",
  "collectFrom": "2024-01-01T00:00:00Z",
  "collectTo": "2024-12-31T23:59:59Z",
  "componentKey": "component-123",
  "componentName": "Main Component",
  "host": "http://sonar.example.com",
  "password": "securePassword",
  "profileId": 12345,
  "profileName": "My Sonar Profile",
  "projectId": 14245,
  "projectName": "My Project",
  "token": "abc123token",
  "tool": "SONAR",
  "username": "user123"
}

---

4. Response Specification

Success Response (200/201)

{"code": 200,"message": "Success"}

Error Response (400/401/404/500)

{"code": 400,"message": "Bad Request"}

---

5. Sequence / Flow (Source)

@startuml
actor Client
participant "Dashboard Service" as DS
queue "Request Queue" as Q
participant "Scheduler (5s)" as Sch
database "MongoDB\nstatusManagerCollection" as StatusDB
participant "Worker Pool (max=5)" as Worker
participant "SonarQube API" as Sonar
database "MongoDB\nsonarMeasureComponentCollection" as SonarDB


Client -> DS: POST /collectSonarData\n{projectKey, metrics, collectFrom, collectTo, ...}
activate DS
DS -> Q: Push collect request
DS -> StatusDB: Insert status = "waiting for sync"
DS --> Client: 200 OK\n{ "message": "Request queued" }
deactivate DS


Sch -> Q: Poll request (FIFO)
Q --> Sch: Request (if available)


alt If request found
Sch -> Worker: Dispatch request (max 5 parallel)
activate Worker
Worker -> StatusDB: Update status = "in sync"
Worker -> Sonar: Fetch measure component data\\n(using token, projectKey, metrics)
activate Sonar
Sonar --> Worker: Measure component data (JSON)
deactivate Sonar
Worker -> SonarDB: Insert measure component data
Worker -> StatusDB: Update status = "success"
deactivate Worker

else No request
Sch -> Sch: Wait 5s
end


'--- Error handling ---
Worker -> StatusDB: Update status = "failed" (on error)

@enduml

---

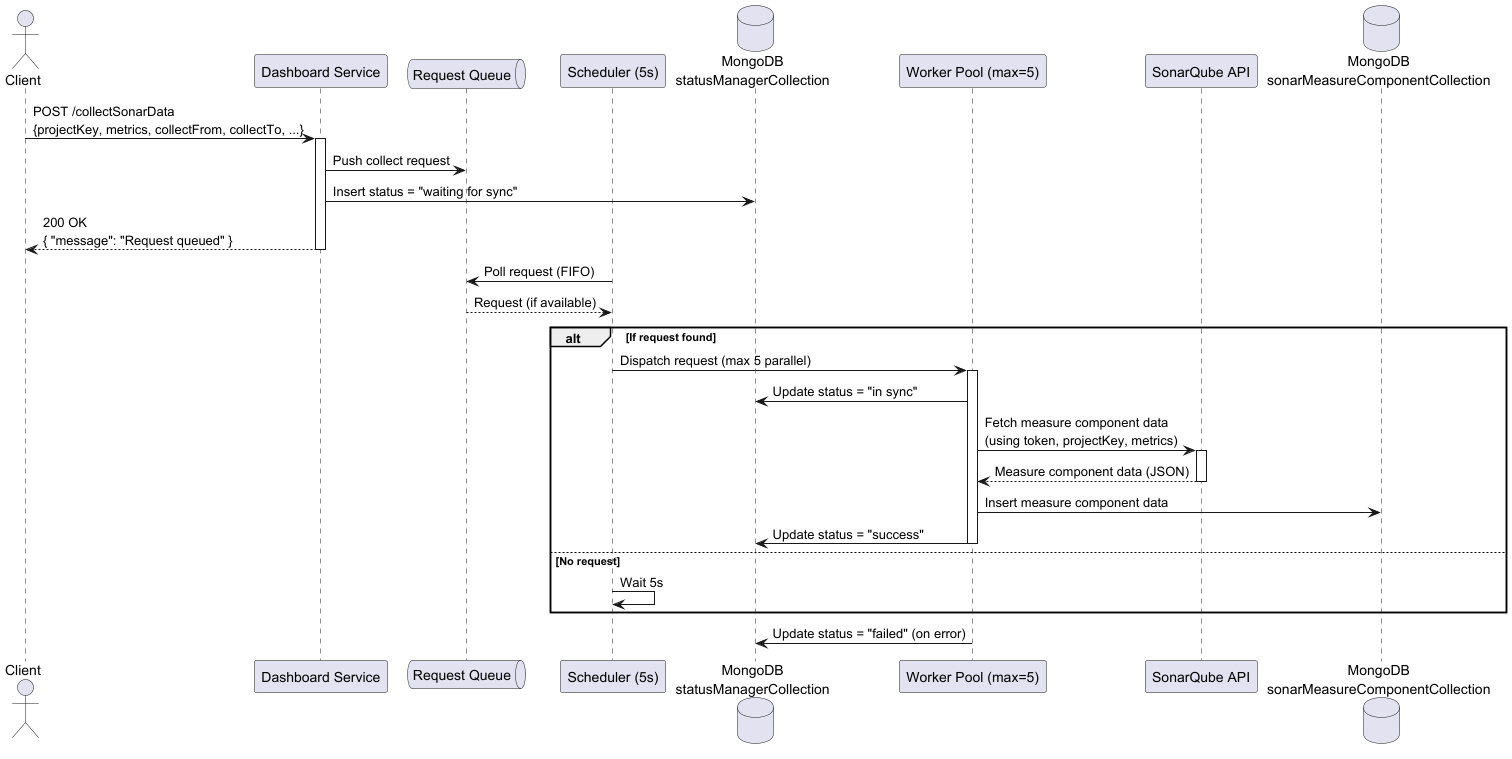

6. Sequence / Flow (Image)

---

7. Dependencies

• DB tables:

  • sonarMeasureComponentCollection

• External service call:

• Message broker/topic:

---

8. Security & Performance Considerations

• Authentication & Authorization
• Rate limit / Throttling
• Caching
• Timeout & Retry logic

---

9. Test Cases (basic)

Case	Input	Expected Output	Notes
Valid request	{...}	200 + data
Missing param	{}	400 error
Unauthorized		401 error

---

10. Change History

Version	Date	Author	Change
