Manage Networks

Networking is composed of service, ingress, and network policy, and the internal screen organization is similar, so we'll refer to the service resource.

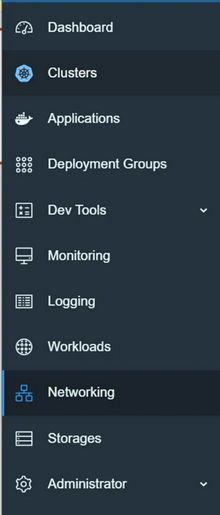

To manage Kubernetes networking resources, select Networks from the side menu:

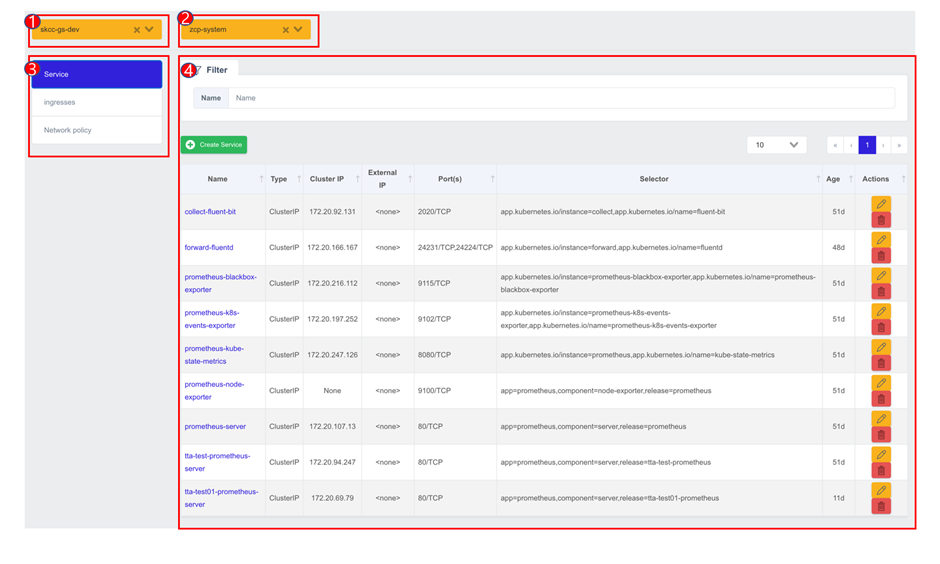

Kubernetes Resource Lookup

You can view the resources deployed in your Kubernetes cluster.

➀ Select Cluster: Select the cluster for which you want to look up resources. The list in the Namespace combo box changes as you select a cluster.

➁ Select Namespace: Select the namespace where you want to look up resources. When you select a Namespace, a list of resources of the currently selected type is displayed.

➂ Select a resource type: A list of resource types provided by the Modernization Platform. When selected, a list of resources is displayed.

➃ Resource List Screen: Displays a list of resource types that exist within the selected cluster, Namespace. It is searchable by Name value and provides paging functionality if there are many resources. The columns in the resource table are what comes up when you do a wide output query with the kubectl cli.

Managing Kubernetes Resource Information

Select the resource you want to learn more about from the resource list to go to the resource details screen. Service resources are organized into two tabs: YAML and Overview.

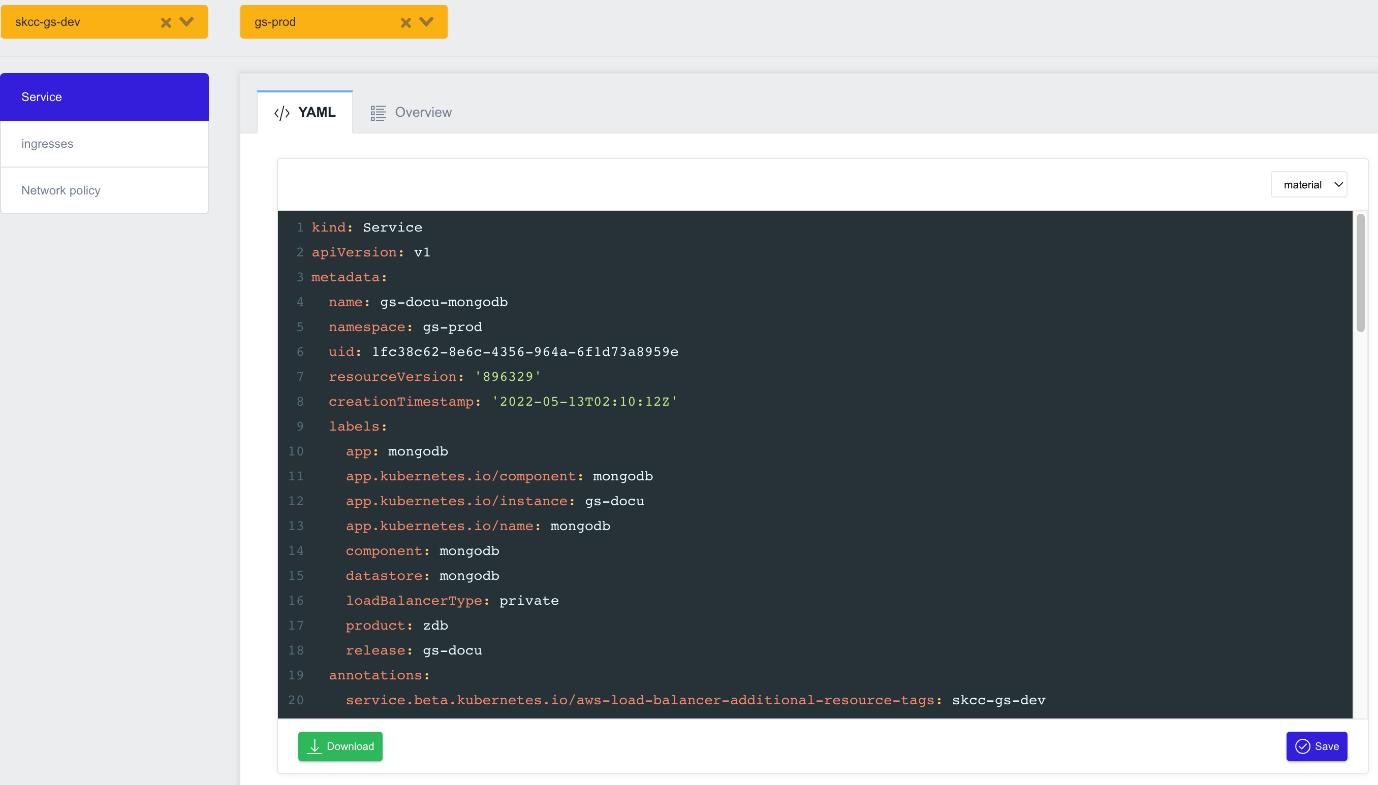

YAML

You can see the details of the resource in YAML format. You can download the file via the Download button, modify it and click the Save button to change the actual resource.

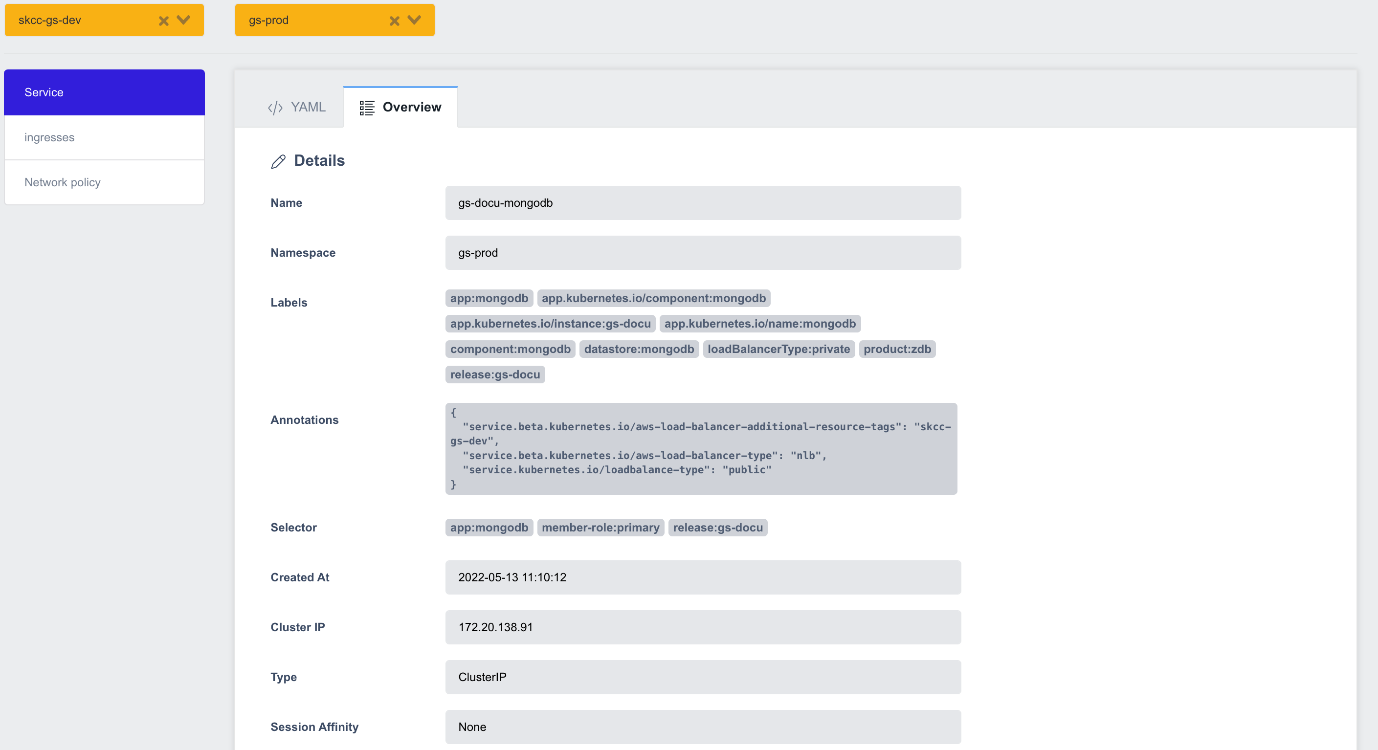

Overview

Displays the details of the resource in a separate Web UI:

Deleting a Kubernetes Resource

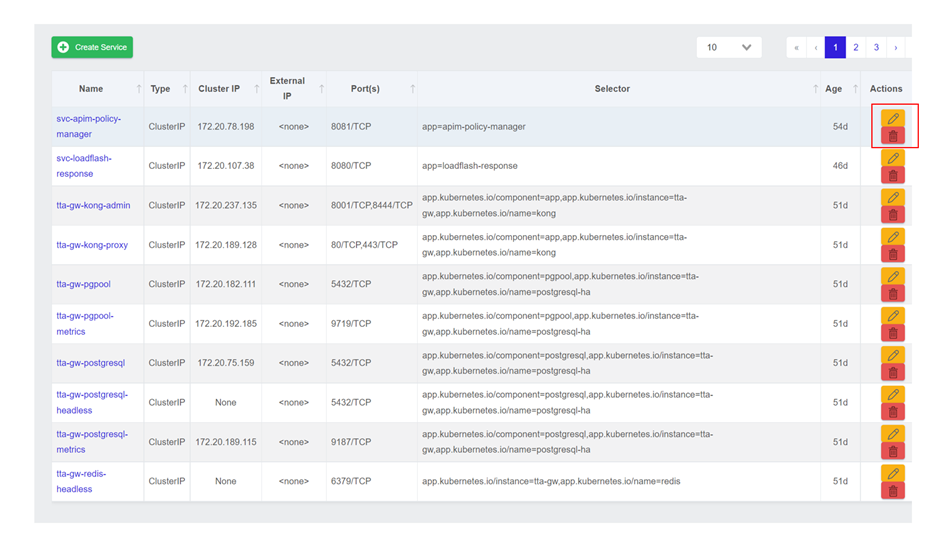

On the Kubernetes Resource List screen, you can delete a Kubernetes resource by clicking the Delete action button:

Then the Confirm Resource Deletion pop-up window is displayed. Check the name of the resource you want to delete, and click the OK button to delete the resource:
