Access Create Backend Screen

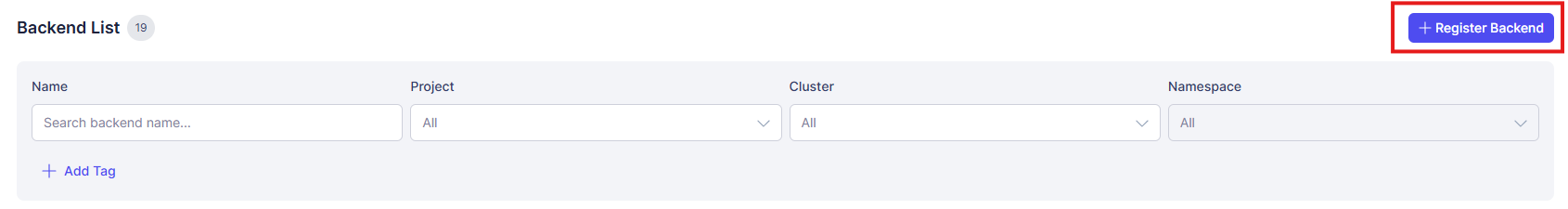

From the Backend List page, click Register Backend button at the top-right corner of the screen.

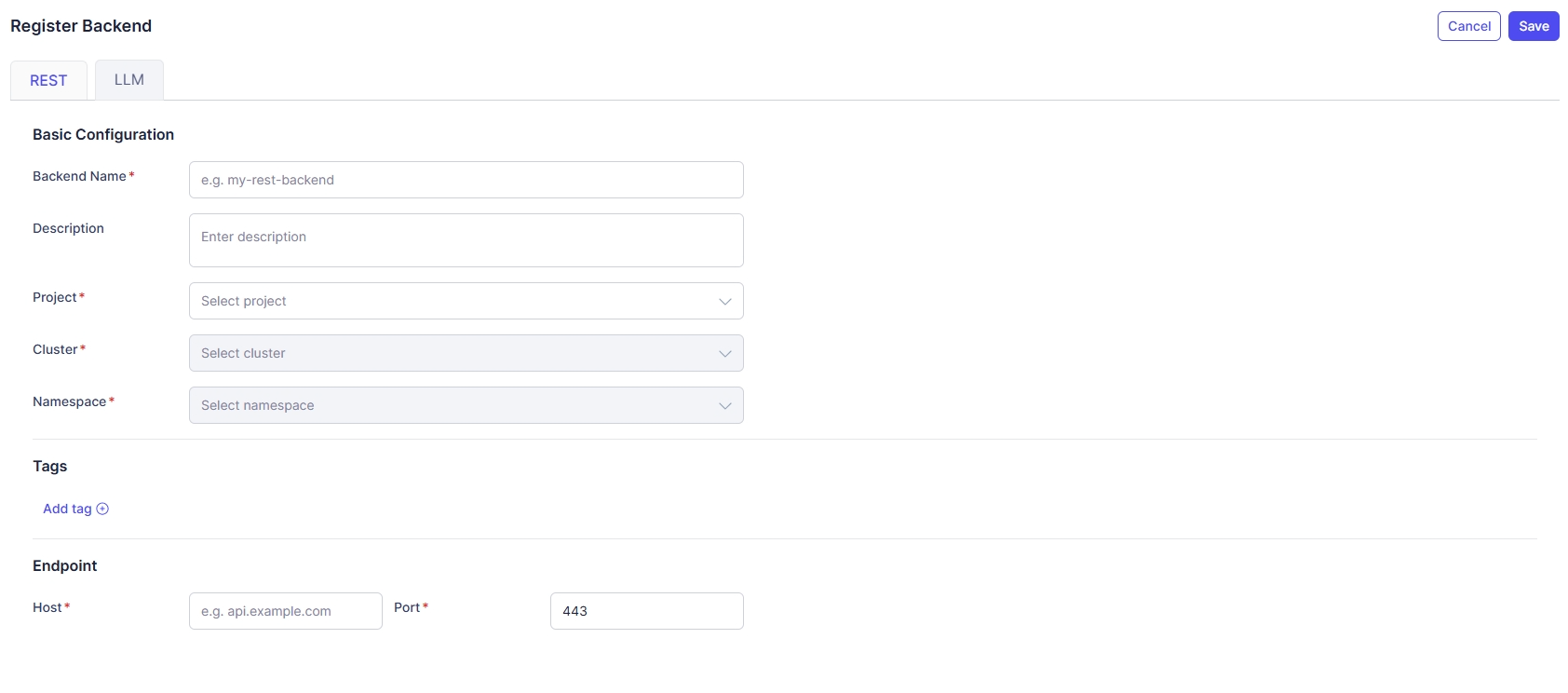

Step 1: Fill in the Register Backend form

REST Tab​

Basic Configuration​

  • Backend Name (Required): Backend identifier.
  • Description: Short description about corresponding backend.
  • Project (Required): Select a project.
  • Cluster (Required): Select a cluster under the chosen Project.
  • Namespace (Required): Select a namespace under the chosen Cluster.

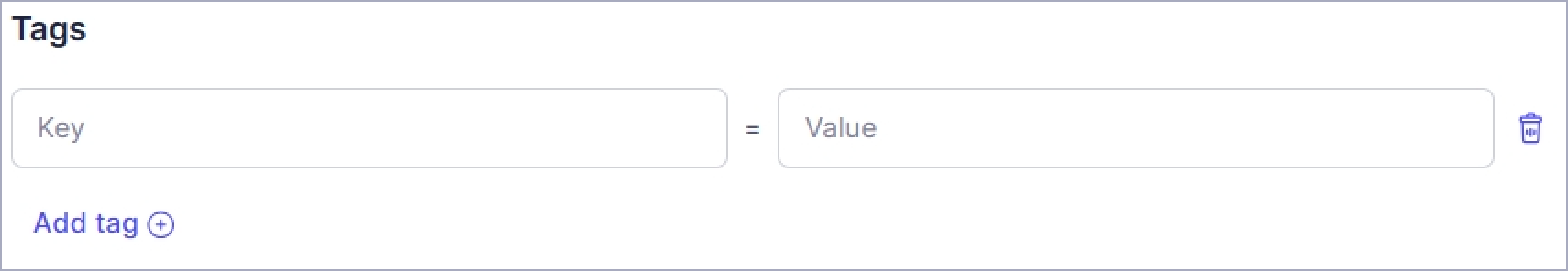

Tags​

User can add multiple tags for filtering on the Backend list.

  • Click Add tag and enter Key and Value:

  • Multiple tags are supported.

Endpoint​

  • Host (Required): The backend server hostname or IP address that the gateway will forward requests to.
  • Port (Required): The TCP port on the host to connect to. (Default value: 443)

LLM Tab​

Basic Configuration​

  • Backend Name (Required): Backend identifier.
  • Description: Short description about corresponding backend.
  • Project (Required): Select a project.
  • Cluster (Required): Select a cluster under the chosen Project.
  • Namespace (Required): Select a namespace under the chosen Cluster.

Tags​

User can add multiple tags for filtering on the Backend list.

  • Click Add tag and enter Key and Value:

  • Multiple tags are supported.

Model Source​

  • Self-Hosted Model (CLUSTER): A model running inside the Kubernetes cluster.
  • Public Model (CLOUD): External AI providers such as OpenAI / Anthropic.

After selecting Model Source, additional fields are shown dynamically (provider selection, API key secret, etc.).

Step 2: Save or Cancel​

  • After completing the form, click Save to create Backend.
  • In case you want to discard the changes, click Cancel and navigates back to the Backend List page.
