📌 API Detail Design Document

1. API Information

• API Name: Collect branch data
• Module/Service: amdp-ags-dashboard-backend
• Author: Reus
• Created Date: 2025/08/18
• Last Updated: 2025/08/18

---

2. Overview

• Purpose: API collect data branches on git server
• Description: Collect branch data

---

3. Endpoint Specification

• Method: POST
• URL: /dashboard/collect/branch
• Headers:
  • Authorization: Bearer <token user>
  • Content-Type: application/json

Query Params

Name	Type	Required	Description	Example

Path Params

Name	Type	Required	Description	Example

Request Body

{
  "branch": "main",
  "collectFrom": "2024-12-01",
  "collectTo": "2024-12-15",
  "host": "https://github.com",
  "organizationId": "org456",
  "projectId": 14245,
  "projectName": "My Project",
  "repositoryId": "repo123",
  "repositoryName": "example-repo",
  "token": "ghp_exampletoken123",
  "tool": "GIT"
}

---

4. Response Specification

Success Response (200/201)

{"code": 200,"message": "Success"}

Error Response (400/401/404/500)

{"code": 400,"message": "Bad Request"}

---

5. Sequence / Flow (Source)

@startuml
actor Client
participant "Dashboard Service" as DS
queue "Request Queue" as Q
participant "Scheduler (5s)" as Sch
database "MongoDB\nstatusManagerCollection" as StatusDB
participant "Worker Pool (max=5)" as Worker
participant "Git Provider (GitHub)" as Git
database "MongoDB\ngitCommitCollection" as CommitDB
database "MongoDB\ngitPullRequestCollection" as PRDB
database "MongoDB\ngitBranchCollection" as BranchDB


Client -> DS: POST /collectAllData\n{repo, branch, collectFrom, collectTo, ...}
activate DS
DS -> Q: Push collect request
DS -> StatusDB: Insert status = "waiting for sync"
DS --> Client: 200 OK\n{ "message": "Request queued" }
deactivate DS


Sch -> Q: Poll request (FIFO)
Q --> Sch: Request (if available)


alt If request found
Sch -> Worker: Dispatch request (max 5 parallel)
activate Worker
Worker -> StatusDB: Update status = "in sync"
Worker -> Git: Fetch branch/commit/PR data
activate Git
Git --> Worker: JSON data
deactivate Git
Worker -> CommitDB: Insert commit data
Worker -> PRDB: Insert pull request data
Worker -> BranchDB: Insert branch data
Worker -> StatusDB: Update status = "success"
deactivate Worker

else No request
Sch -> Sch: Wait 5s
end


'--- Error handling ---
Worker -> StatusDB: Update status = "failed" (on error)

@enduml

---

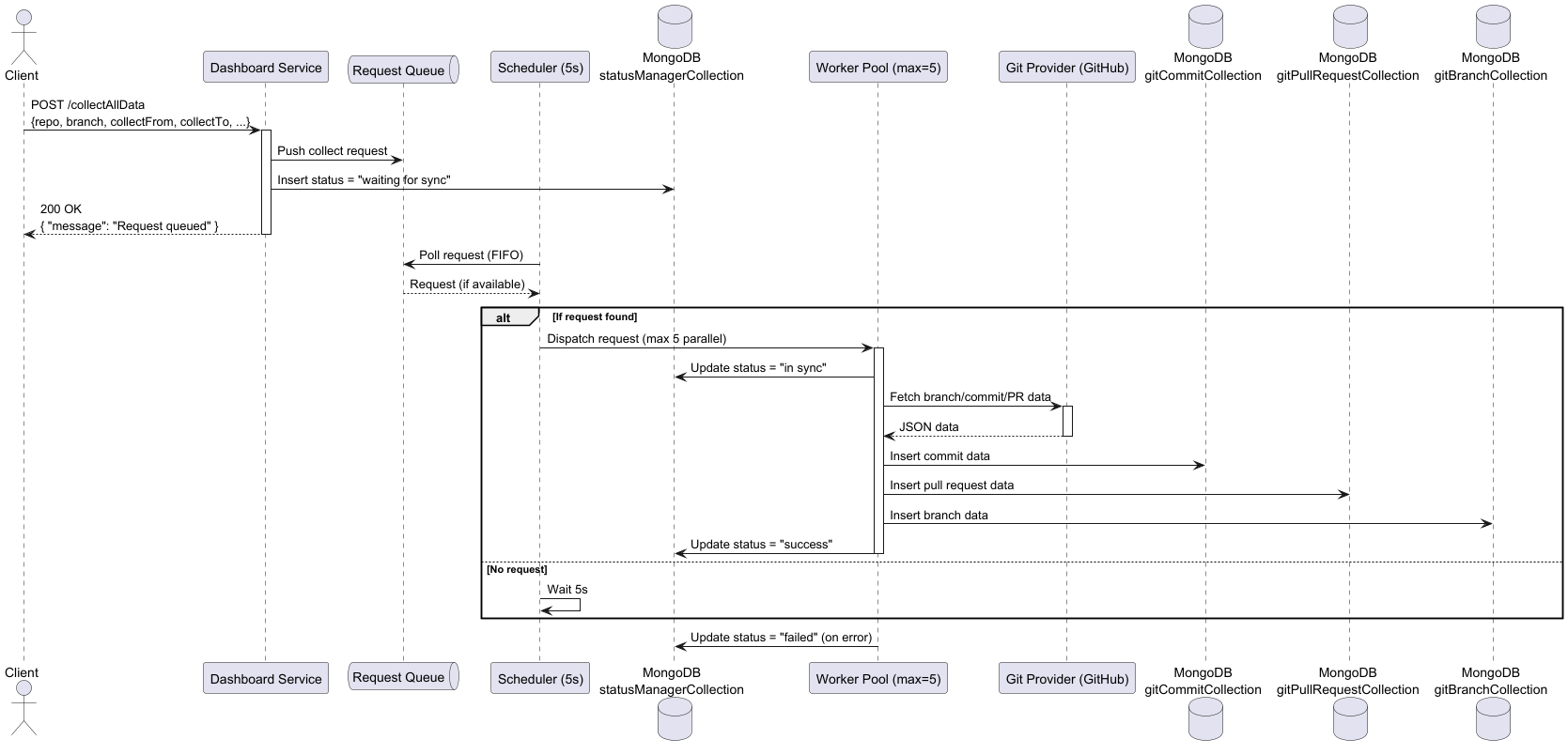

6. Sequence / Flow (Image)

---

7. Dependencies

• DB tables:

gitCommitCollection, gitPullRequestCollection, gitBranchCollection, statusManagerCollecton

• External service call:
• Message broker/topic:

---

8. Security & Performance Considerations

• Authentication & Authorization
• Rate limit / Throttling
• Caching
• Timeout & Retry logic

---

9. Test Cases (basic)

Case	Input	Expected Output	Notes
Valid request	{...}	200 + data
Missing param	{}	400 error
Unauthorized		401 error

---

10. Change History

Version	Date	Author	Change
